| Weight | 6.76 kg |
| Length (mm) | 197 |
| Number of grooves | 6 |
| Pulleys | with freewheel belt pulley |
| Distance from belt pulley to alternator (mm) | 39 |
| Alternator type | excl. vacuum pump |
| Fastening type | double pivot lever |
| Recommended additional repairs | v-belt/v-ribbed belt |
| Alternator charging current (A) | 120 |
| Rotation direction | clockwise rotation |
| Clamp | b1+(m8),dfm,l |
| Plug-type id | pl61 |
| Voltage (V) | 14 |
| Belt pulley Ø (mm) | 56 |
| Weight | 6.76 kg |
Expresslevering
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
| Manufacturer | Productnumber |
| FORD | 1100712 |
| FORD | 1253624 |
| FORD | 3M211 0300 BA , 3M2110300BA |
| FORD | 98VW 10300 EA , 98VW10300EA |
| SEAT | 028 903 028 E , 028903028E |
| SEAT | 028 903 029 G , 028903029G |
| SEAT | 028 903 030 , 028903030 |
| SEAT | 028 903 030 A , 028903030A |
| SEAT | 038 903 023 S , 038903023S |
| SEAT | 038 903 024 F , 038903024F |
| SEAT | 038 903 024 G , 038903024G |
| VW | 028 903 028 E , 028903028E |
| VW | 028 903 029 G , 028903029G |
| VW | 028 903 030 , 028903030 |
| VW | 028 903 030 A , 028903030A |
| VW | 038 903 018 Q , 038903018Q |
| VW | 038 903 023 S , 038903023S |
| VW | 038 903 024 F , 038903024F |
| VW | 038 903 024 G , 038903024G |
| SKODA | 028 903 028 E , 028903028E |
| SKODA | 028 903 029 G , 028903029G |
| SKODA | 038 903 018 Q , 038903018Q |
| SKODA | 038 903 023 S , 038903023S |
| SKODA | 038 903 024 F , 038903024F |
| AUDI | 028 903 028 E , 028903028E |
| HITACHI | LR 1120-701 , LR1120701 |
| Usage numbers |

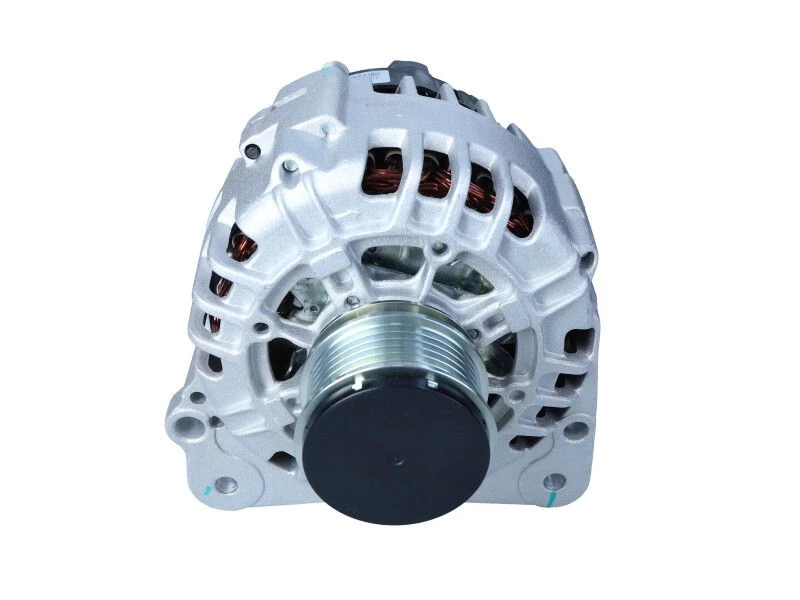

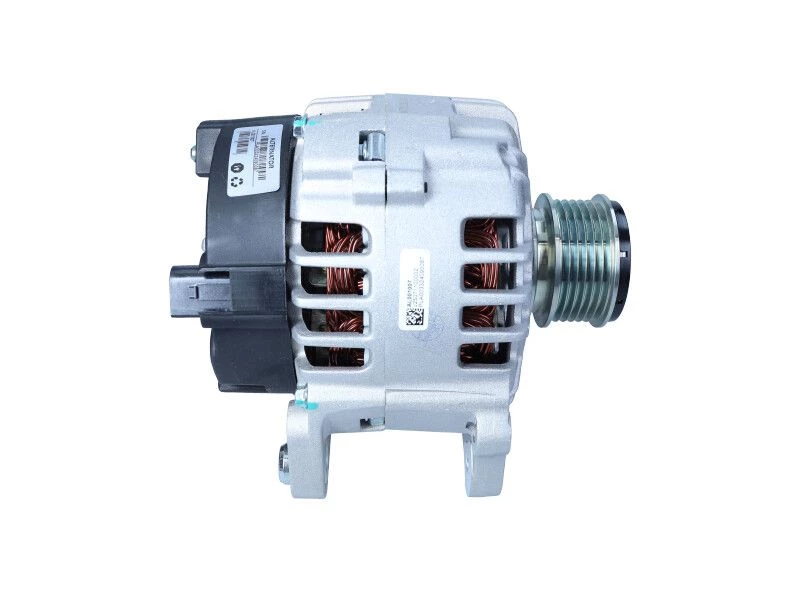

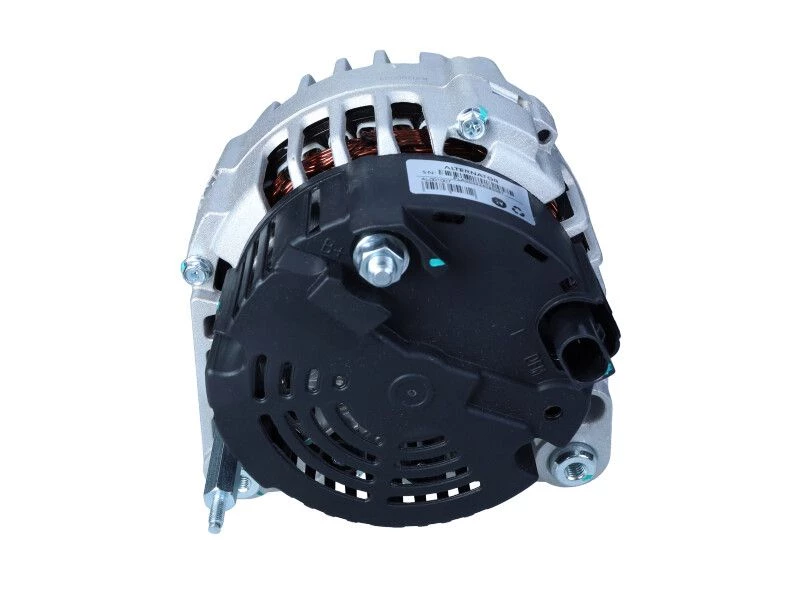

The Alternator (55-0507) generates electrical power and recharges the vehicle battery. Installing a Porza-quality alternator restores stable charging and full electrical system reliability.
An alternator is an electrical component that generates power for the vehicle while the engine is running. Its function is to supply electricity to the vehicle’s electrical systems and recharge the battery.
Key specifications include voltage, amperage output, pulley type, mounting design, connector type, and compatibility with the vehicle. It must provide sufficient electrical power for all systems.
Replacement is necessary when the alternator fails or performs poorly. Common symptoms include a warning light, dim lights, battery not charging, electrical issues, or unusual noises.
Porza offers a fit guarantee option where your vehicle details are checked against product specifications to ensure correct compatibility.
Porza provides high-quality electrical components with fast delivery across Europe and options for online ordering or in-store pickup.
